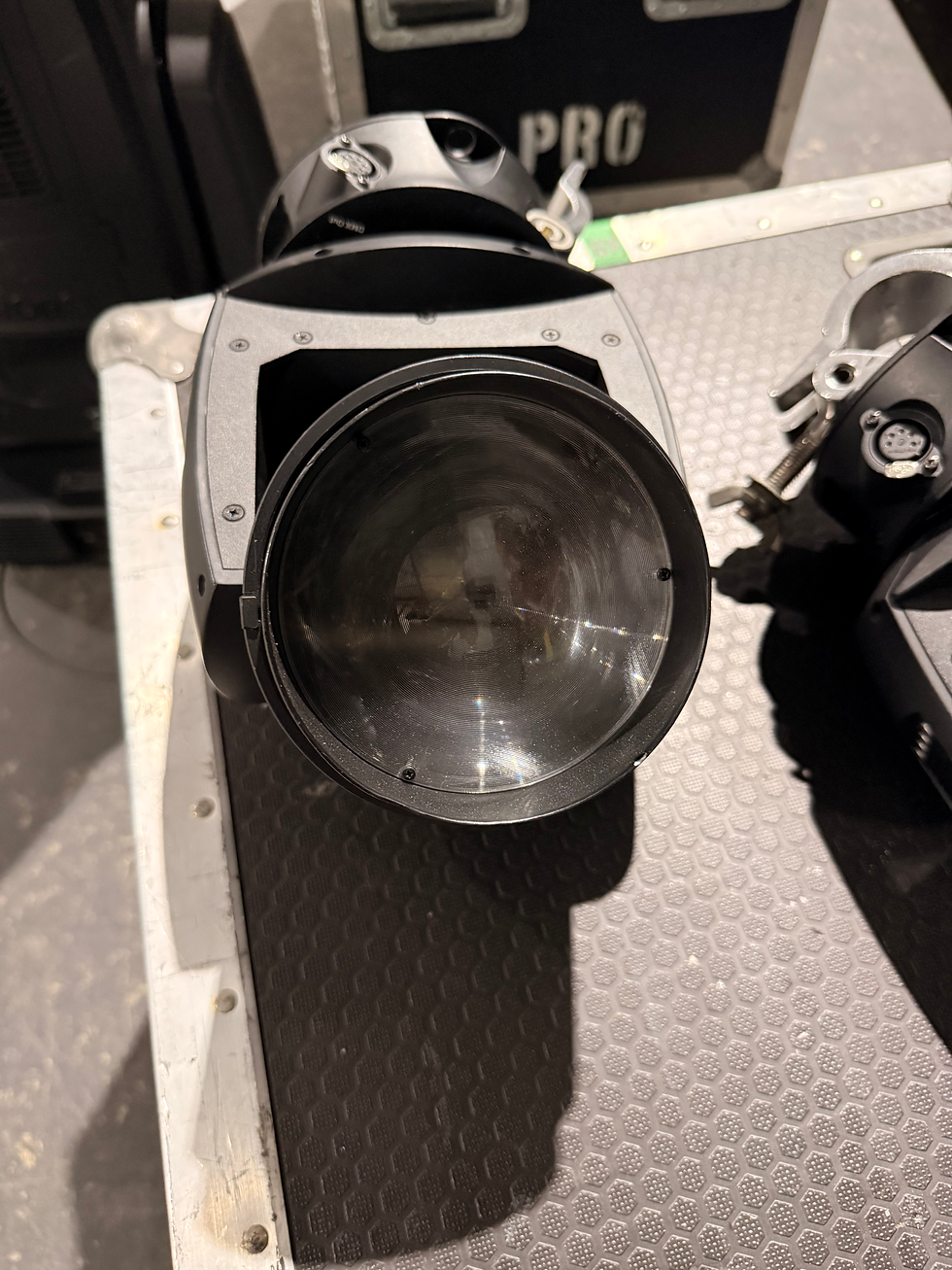

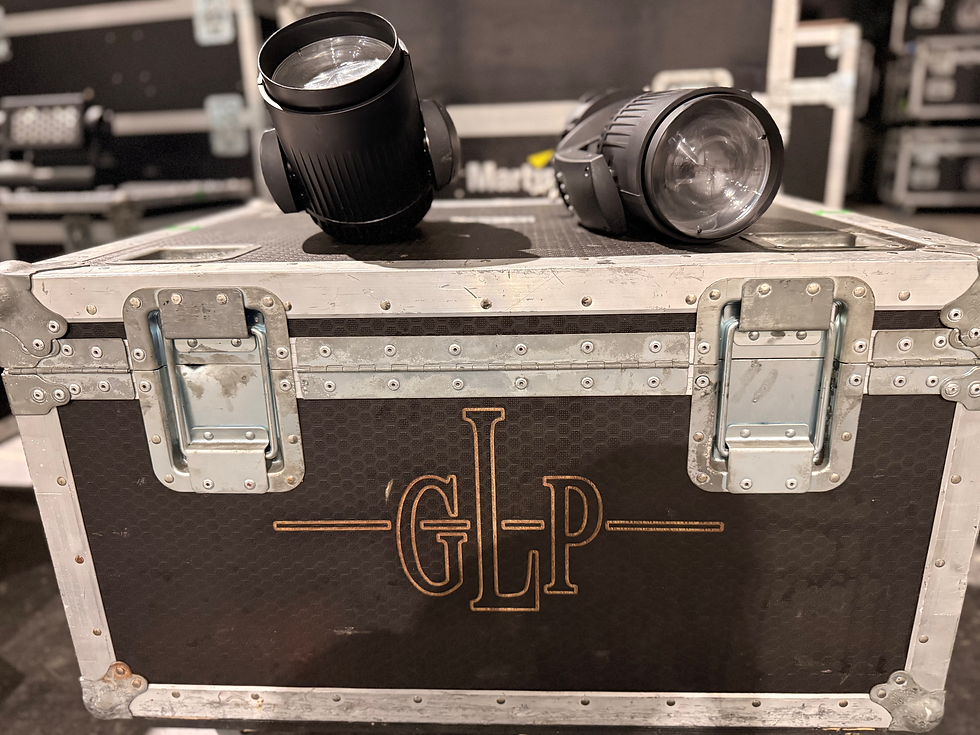

Impression FR1

Features:

Light Source

• 60 W RGBW Osram Ostar LED

• 50,000 hours

• CRI 80

• TLCI: 80

• TM30-15: 77/106

Control

• DMX-5pin

• Back lit high contrast graphic LCD menu

• Over temperature protection

• 16 DMX channels

• Display

  • Illuminated high contrast graphic LCD

• Protocol

  • DMX-512

Effects

• Virtual color wheel match referenced Lee colors

• Color temperature control, 2700 Kelvin – 10,000 Kelvin

Connectors

• DMX data

  • XLR 5-pin in/out

• Mains power

  •   Neutrik PowerCON in/out.

Power Supply

• Mains voltage 100-240 VAC/50-60 Hz

• Variable PWM

Operating Conditions

• IP 20 rated

• Maximum ambient temperature: 104°F (40°C)

Mounting Options

• Three M10 threads

• Two safety wire attachment on both sides

Optical System

• Tight beam with narrow 3.5°

• Fast 1:10 zoom with a flat field wash of 35°

Movement

• 540° continuous pan rotation

• 220° tilt

• 16 bit resolution with position feedback

Shutter / Dimmer

• Flicker free operation with flexible PWM

• Smooth electronic dimming from 0-100% different dimming curves

• Variable electronic strobe 1-10 Hz

• Pulse and random shutter effects

•

Shipping

• Cardboard box

• 8-way flight case available

• 12-way flight case available

Housing Colors

• Standard color is black

• For other colors please contact sales department

Dimensions

• (L x W x H): head vertical

  • 7.6 in. x 5.5 in. x 14 in. (19.5 cm x 14 cm x 35.5 cm)

Net Weight

• Weight: 8.8 lbs. (4 kg)
